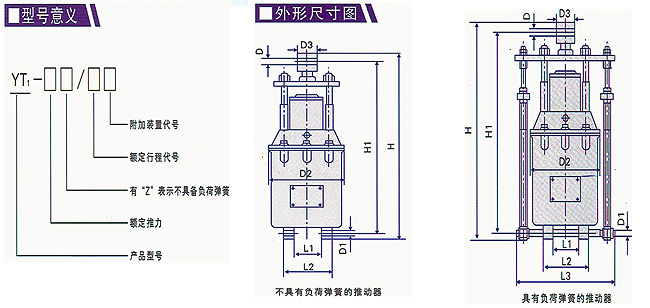

■YT1系列電力液壓推動器技術參數及外形尺寸mm
|
|
型號 |
額定推力kg |
額定行程mm |
電機功率kw |
額定電壓v |
額定電流A |
動作時間S |
頻率c/h |
D |
D1 |
D2 |
D3 |
H |
H1 |
L |
L2 |
|
|
上升 |
下降 |
|||||||||||||||
|
YT1-18Z/2 |
18 |
25 |
0.06 |
380 |
0.28 |
0.6 |
0.4 |
720 |
12 |
12 |
137 |
25 |
343 |
321 |
25 |
50 |
|
YT1-25Z/4 |
25 |
40 |
0.08 |
380 |
0.3 |
0.7 |
0.4 |
720 |
12 |
16 |
154 |
25 |
386 |
360 |
32 |
64 |
|
YT1-45Z/5 |
45 |
50 |
0.12 |
380 |
0.39 |
0.7 |
0.4 |
720 |
16 |
20 |
178 |
30 |
496 |
460 |
47 |
94 |
|
YT1-45Z/6 |
45 |
60 |
0.12 |
380 |
0.39 |
0.7 |
0.4 |
720 |
16 |
20 |
178 |
30 |
496 |
460 |
47 |
94 |
|
YT1-90Z/8 |
90 |
80 |
0.25 |
380 |
0.62 |
0.8 |
0.5 |
720 |
20 |
25 |
210 |
40 |
600 |
555 |
60 |
120 |
|
YT1-125Z/10 |
125 |
100 |
0.4 |
380 |
0.98 |
0.75 |
0.6 |
720 |
25 |
25 |
254 |
50 |
745 |
695 |
40 |
90 |
|
YT1-180Z/10 |
180 |
100 |
0.4 |
380 |
0.98 |
1 |
0.6 |
720 |
25 |
30 |
254 |
50 |
820 |
765 |
85 |
170 |
|
YT1-180Z/12 |
180 |
120 |
0.4 |
380 |
0.98 |
1 |
0.6 |
720 |
25 |
30 |
254 |
50 |
820 |
765 |
85 |
170 |
|
YT1-320Z/12 |
320 |
120 |
1.1 |
380 |
2.5 |
0.9 |
0.9 |
720 |
35 |
35 |
375 |
55 |
877 |
815 |
100 |
190 |
|
YT1-320Z/20 |
320 |
200 |
1.1 |
380 |
2.5 |
2.4 |
2 |
720 |
35 |
35 |
375 |
55 |
957 |
895 |
100 |
190 |
|
型號 |
彈簧制動力kg |
額定行程mm |
電機功率kw |
額定電壓v |
額定電流A |
動作時間S |
頻率c/h |
D |
D1 |
H |
D3 |
H1 |
L1 |
L2 |
L3 |
|
|
上升 |
下降 |
|||||||||||||||
|
YT1-25/4 |
20 |
40 |
0.08 |
380 |
0.3 |
0.7 |
0.4 |
720 |
12 |
16 |
408 |
25 |
380 |
32 |
64 |
228 |
|
YT1-45/6 |
40 |
60 |
0.12 |
380 |
0.39 |
0.7 |
0.4 |
720 |
16 |
20 |
495 |
30 |
460 |
47 |
94 |
266 |
|
YT1-90/8 |
70 |
80 |
0.25 |
380 |
0.62 |
0.8 |
0.5 |
720 |
20 |
25 |
600 |
40 |
555 |
60 |
120 |
320 |
|
YT1-125/10 |
90 |
100 |
0.4 |
380 |
0.98 |
0.75 |
0.6 |
720 |
25 |
25 |
745 |
50 |
695 |
40 |
90 |
390 |
|
YT1-180/12 |
105 |
120 |
0.4 |
380 |
0.98 |
1 |
0.6 |
720 |
25 |
30 |
820 |
50 |
765 |
85 |
170 |
420 |
